Sub-Compact

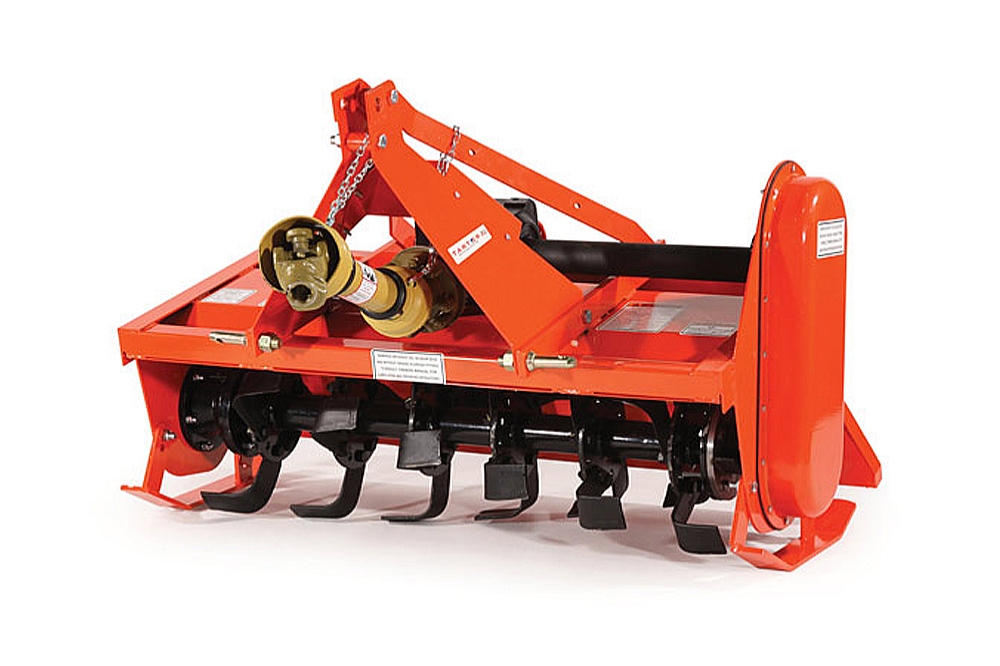

4′ Rotary Tiller Sub-Compact

MSRP: $1,849.99
Item #: RTSC4

  • Thick Steel Cutting Tines: Long lasting, powerful and effective.

  • Four Depth Levels: For mixing loose soil or breaking up the toughest ground.


  • Designed for Rugged Terrain: Built Tarter Tough at every key point.



Overview

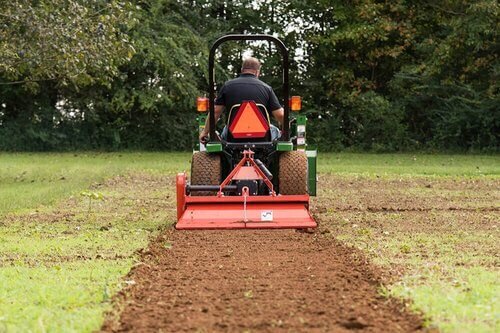

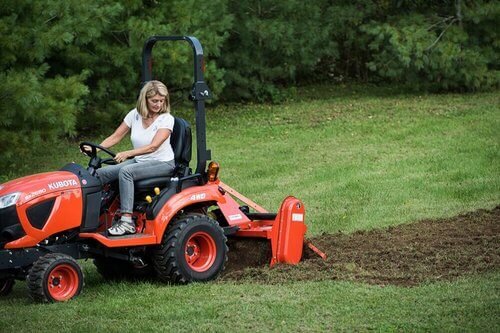

Tarter’s Sub-Compact Rotary Tiller makes it quick and easy to work up acres of dirt or create large food plots. Our Tiller excels at cultivating land; stirring up soil for gardens, food plots, laying sod, and many other tillage needs. This implement is ‘Tarter-Tough’ and versatile: choose from four depth levels to mix up loose soil, or break up the toughest ground.

The Tiller’s self-sharpening tines are long lasting, powerful and effective. These cutting tines are also wider than the standard - so they’ll mix up the soil better, and last longer. And if the soil suddenly turns rocky - Tarter’s rugged Sub-Compact Tiller is uniquely built tough at every key point.

The Rotary Shaft is powerful and sturdy; forged with thick steel, that’s large in diameter. We made sure the circular bearing flange that supports the shaft was also resilient; made of heavy duty cast iron. Then we went the extra mile to add strong, large bearings to support the rotary shaft.

And an exceptional Tarter design keeps nuts and bolts from vibrating loose: we use a thicker plated steel A-frame hitch which is sturdier and reduces vibration. That’s a big advantage over a flat bar type A-frame. Another key feature: a 45 horsepower gearbox has twice the horsepower of your tractor so it can easily handle the work.

  • Category 1 hookup and Category 0 spacing for sub-compact tractors (Cat. 1 pins included)

  • Not to exceed 25 HP rated tractors

  • 45 HP heavy-duty cast iron 540 RPM gearbox

  • Cast, precision machined bearing housing with ball bearings

  • Grease bath lubrication

  • Self-sharpening heat treated cutting tines

  • 3-point rear attach PTO driven with heat treated cutting tines

  • Adjustable runners allow for a tilling depth of up to 7”

  • Heavy-duty PTO shaft and slip clutch with chain driven drive line

MSRP & Specs

addtoquote
4′ Rotary Tiller Sub-Compact
MSRP: $1,849.99
Item #: RTSC4
Unit Height: 24″
Approx. Weight: 510 lbs.
Width: 50″
Length: 69″




Related Products



5’ Sub-Compact Rear Grader Blade

  • Multiple Uses: Leveling, backfilling, finish grading, etc.

  • Adjustable Blade Angles: Push and place materials in any direction.


  • Durable and Corrosive Resistant: Tough enough for any job, in any kind of weather.



Overview

Tarter’s Sub-Compact Rear Grader Blade is perfect for grading or scraping gravel, sand, dirt and snow. This implement is what you need for leveling, backfilling and finish grading on your farm or ranch.

Whatever direction you’re headed - you can put the grader blade to good use. Drive forward to fill a hole, or smooth out gravel. Put the tractor in reverse and the implement helps create a ditch or pull water from a pasture.

An easy pin-pull design gives you five blade-angles to choose from, so whatever you’re working with will be easily pushed to one side. Keeping the blade straight will move the material off to both sides.

Features 3-point rear attachment and 1/4" blade with 1/2" thick replaceable cutting edge. Category 1 hookup and Category 0 spacing for sub-compact tractors (Category 1 pins included).

MSRP & Specs

addtoquote
5′ Rear Grader Blade Sub-Compact
MSRP: $443.99
Item #: RBSC5
PTO HP Rating: 18-32
Unit Height: 26″
Approx. Weight: 168 lbs.
Width: 60″
Length: 22″
Blade Height: 13″




Video



Related Products



4′ Box Blade Sub-Compact

  • Performs Countless Jobs: Collects gravel, smooths rough spots, levels ruts, potholes, driveways, etc.

  • Four depth levels: Adjustable ripper shanks allows for mixing loose soil to breaking up the toughest ground.


  • Durable Back Blade: Handily moves dirt and gravel for backfilling a ditch.



Overview

The Tarter Sub-Compact Box Blade performs countless jobs on your farm or ranch. Use it for collecting gravel and smoothing over rough spots. It’s the perfect tool to solve those consistent problems with ruts, washouts, and potholes; plus it’s great for leveling driveways.

Put your tractor in reverse and use the back blade to push around dirt and gravel. This comes in handy if you need to backfill a ditch.

This implement is equipped with ripper shanks to break up the toughest ground. And Tarter's Box Blade gives you the option of four depth levels – easily adjusting to the difficulty of your project.

Tarter’s Sub-Compact Box Blade is American made, built to withstand the harshest elements with high quality, corrosive resistant steel. A thick steel beam provides long lasting support. And we also paid attention to the smaller details - adding thick steel gussets for extra strength.

Category 1 hookup and Category 0 spacing for sub-compact tractors (Cat. 1 pins included). Not designed for use with tractors over 25 HP.

This implement is equipped with ripper shanks to break up the toughest ground. And Tarter's Box Blade gives you the option of four depth levels – easily adjusting to the difficulty of your project.

MSRP & Specs

addtoquote
4′ Box Blade Sub-Compact
MSRP: $815.99
Item #: BBSC4
Unit Height: 32″
Approx. Weight: 270 lbs.
Width: 49-1/2″
Length: 28″




Related Products



5′ Disc Sub-Compact

MSRP: $1,320.99
Item #: DSC5

  • Heavy Duty Steel Notched Blades: Perfectly preps and tills for vegetable plots and gardens.

  • Adjustable Angles: Positions to aggressively dig up dirt, cutting a 5' swath with each pass.


  • Heavy Duty Frame: Tough enough for any job.



Overview

Tarter’s Sub-Compact Disc is perfect when you want to create a food plot or plant a garden in rough terrain. With its Heavy Duty Steel Notched Blades our Sub-Compact Disc perfectly preps and tills your land for food plots and gardens.

The disc cuts a 5-foot swath with each pass. The back and front blades are Tarter tough and precisely positioned to aggressively cut up the dirt - opening it up for planting.

The front blades are adjustable in three ways to offer you more tillage options.

Tarter's Sub-Compact Disc has a durable, corrosive resistant finish - strong enough for any job, in any kind of weather. It also boasts a heavy-duty frame, with large bearings to support the blades.

Category 1 hookup and Category 0 spacing for sub-compact tractors (Category 1 pins included).

MSRP & Specs

addtoquote
5' Disc Sub-Compact
MSRP: $1,320.99
Item #: DSC5 *
Unit Height: 30-1/2″
Approx. Weight: 407 lbs.
Width: 60″
Length: 48″

*Special order requiring additional lead-time.




Related Products



5′ Landscape Rake Sub-Compact

MSRP: $586.99
Item #: LRSC5

  • Curved Steel Tines: Clears roots, rocks, and other debris.

  • Optional Rake Angles: Lets you choose where the debris lands.


  • Reverse Option: Pushes away dirt and debris with ease.



Overview

Depend on Tarter’s Sub-Compact Landscape Rake for leveling soil or moving rocks out of the way for planting.

It's a common situation: you’ve tilled the land but still can’t plant because there are rocks and other debris in your field. Since this problem can be hazardous and certainly prevent vegetation from growing, our Landscape Rake is the perfect solution.

With its curved C-tines - the Tarter Landscape Rake will clear rocks, roots, and other debris off to the side for easier cleanup, and the tines on this implement won’t destroy your field by digging too deep.

Back up your tractor, and the Landscape Rake will push away dirt or debris with ease. It can also be quickly rotated so that you choose where the debris lands.

Category 1 hookup and Category 0 spacing for sub-compact tractors. Features our durable, corrosion-resistant powder coat finish.

NOTE: This unit can be fitted with optional wheel kit for easier maneuverability and maintaining consistent depth.

MSRP & Specs

addtoquote
5′ Landscape Rake Sub-Compact
MSRP: $586.99
Item #: LRSC5
Unit Height: 21″
Approx. Weight: 177 lbs.
Width: 61″
Length: 48″




Video



Related Products



4′ Rotary Cutter Sub-Compact

  • Two-inch Thick Cutting Capacity: Easily handles small limbs and branches.

  • Durable Heat Treated Blades: Made of thick Tarter Tough steel that will last season after season.


  • ‘Stump Jumper’: Avoids damage by lifting the mower up and over rocks and obstacles.



Overview

The Sub-Compact Rotary Cutter is the perfect solution when you need to mow that back field, create riding and walking trails, and clear paths for wildlife management. Tarter's Sub-Compact Rotary Cutter cuts grass, stalks and light brush with ease.

Our cutter is "Tarter tough" and will last season after season with its durable heat treated blades. This implement has a two-inch thick cutting capacity - so it can easily take care of small limbs and branches.

In case you run over something bigger - Tarter has you covered.  A stump jumper lifts the mower up and over rocks or obstacles. That avoids damage to the gear box and blades.

To prevent flying debris, this hard-working cutter also comes equipped with a rubber discharge front guard. An optional rear guard is available as well.

Also - an adjustable rear wheel helps with stability, weight support, and keeping the cutter level.

Another key feature: the cutter’s 45 horsepower heavy-duty cast iron gearbox has twice the horsepower of your tractor - so it can easily handle the work.

  • 14-gauge deck, 13 gauge sides with series 4 driveline.

  • Category 1 hookup and Category 0 spacing for sub-compact tractors (Category 1 pins included).

  • Features our durable, corrosion-resistant powder coat finish.

MSRP & Specs

addtoquote
4' Rotary Cutter Sub-Compact
MSRP: $1,467.99
Item #: RCSC4
PTO HP Rating: 18-32
Unit Height: 24″
Approx. Weight: 350 lbs.
Width: 50″
Length: 69″





Replacement Parts

addtoquote
Front
Replacement Rubber Guard
MSRP: $62.99
Item #: RCGRD4
Approx. Weight: 8 lbs.

addtoquote
Back
Replacement Rubber Guard
MSRP: $30.99
Item #: RCRGRD4
Approx. Weight: 5 lbs.

addtoquote
Both
Replacement Rubber Guard
MSRP: $89.99
Item #: RCGRDK4
Approx. Weight: 13 lbs.

Video



Related Products



Middle Buster/Subsoiler – Sub-Compact

MSRP: $186.99
Item #: MBSSSC

Two Tools in One:

  • Subsoiler: Breaks up tough ground and gets rid of standing water.

  • Middle Buster: Plows up potatoes and other root vegetables.

  • Accelerates Plant Growth: Increases water movement and aeration.




Overview

Tarter’s Sub-Compact Middle Buster-Subsoiler Combo is truly two great implements in one!

Use this implement as a Middle Buster to plant or plow up root vegetables with ease.

Take off the furrow and you’ve got a Subsoiler that will get down deep to break up dense soil, get rid of standing water, and accelerate plant growth. Compacted soil makes it difficult for anything to grow. This soil condition can also reduce plant growth by 50 percent. Tarter’s Subsoiler is the perfect solution to break up that hard ground.

Use the Subsoiler to increase water movement, allow better aeration of the roots, and give them access to additional minerals and nutrients for faster growth.

Here’s another Subsoiler tip: use this implement along tree lines, so roots won’t grow out into your field.

When you’re out working your land, you need the right equipment, and not just any implement will do. Tarter’s middle buster/subsoiler does double duty - it cuts through compacted soil with ease and the double-wing cutter can be used for planting or plowing up potatoes. Attach a subsoiler point and easily break up hard, low ground where water accumulates and watch the water drain after only one pass. Category 1 hookup and Category 0 spacing for sub-compact tractors (Category 1 pins included). Features our durable, corrosion-resistant powder coat finish.

MSRP & Specs

addtoquote
Middle Buster/Subsoiler – Sub-Compact *
MSRP: $186.99
Item #: MBSSSC *
Unit Height: 31″
Approx. Weight: 35 lbs.
Width: 27″

*Special order requiring additional lead-time.
